Part Number: S/B97515
- Waterproofing: IP68 Rating
- Rated Line Pull: 15,500Lbs (7,045kgs) Single Line
- Motor: 6.6hp Series Wound
- Control: Remote Switch, 12’ (3.7m) lead
- Gear Train: 3-Stage Planetary
- Gear Ratio: 430:1
- Clutch: Sliding Ring Gear
- Brake: Automatic Out-Of-Drum
- Drum Size: Diameter 3.45”
- Cable: 98.5’ 3/8” Diameter
- Fairlead: 4-Way Roller

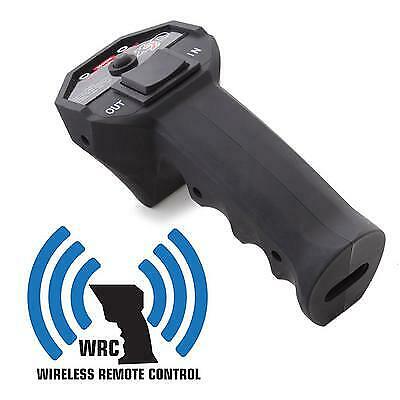

- Remote Control: Included
- Integrated Wireless Remote
- Recommended Battery: 650CCA Minimum for Winching
- Battery Leads: 25mm2, 72”(1.83m)1
- Finish: Textured Black
- Weight: 150.0Lbs (45.0Kgs)
- Mounting Bolt Pattern: 10.0” x 4.50”
- Overall Dimensions: (L x W x H) 22.3” x 7.5” x 10.7”
- California Residents:WARNING

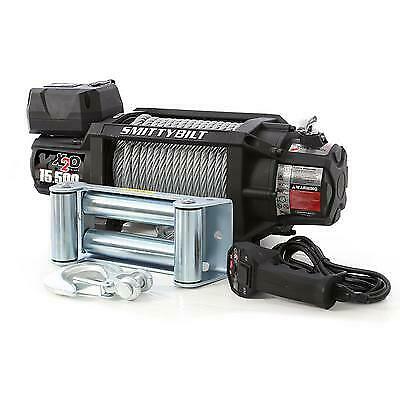

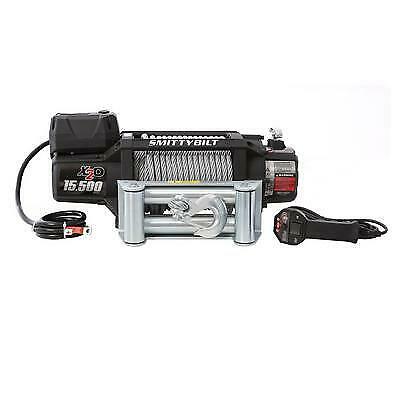

The Smittybilt X2O Winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X2O winch features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that deliver lightning-fast line speeds. And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation. Winch includes a Lifetime Mechanical Warranty and 3 Year Electrical Warranty.
